2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.MAIN '05MY-'06MY

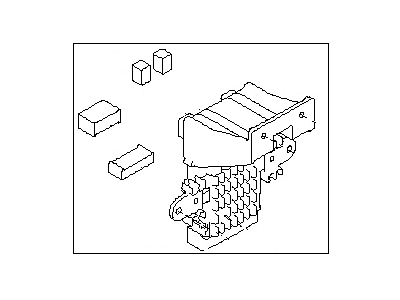

    2005 Subaru Legacy Fuse Box Diagram 1
  • 2.SUB
    2005 Subaru Legacy Fuse Box Diagram 2
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • Fuse Box
    82241 Subaru 82290AG00A
    82290AG00A
    Fuse Box
    • Fitting Vehicle Options: S.(I#+25GT+25GTLTD) +W.(I#+25GT+25GTLTD) +WOBK.(I#+25GTLTD), S.25GLI +W.25GLI +WOBK.(25GT+25GLI)
    • Replaced By: 82290AG00C
  • 82241 Subaru 82290AG01A
    82290AG01A
    Fuse Box
    • Fitting Vehicle Options: SOBK +WOBK.R#
    • Replaced By: 82290AG01B
    $212.40 $151.65
    1
    Add To Cart
  • Fuse-Auto
    82210A Subaru 82210AE07A
    82210AE07A
    Fuse-Auto
    • 7.5A
    • Require Quantity: 11
    • Package Quantity: 1
    • Replaced By: 82210AG07A
    $1.70 $1.02
    1
    Add To Cart
  • 82210A
    82210AE10A
    Fuse-Auto
    • 10A
    • Require Quantity: 03
    • Package Quantity: 1
    • Replaced By: 82210AG10A
    $1.70 $1.02
    1
    Add To Cart
  • 82210A Subaru 82210AE15A
    82210AE15A
    Fuse-Auto
    • 15A
    • Require Quantity: 23
    • Package Quantity: 1
    • Replaced By: 82210AG15A
    $1.70 $1.02
    1
    Add To Cart
  • 82210A Subaru 82210AE20A
    82210AE20A
    Fuse-Auto
    • 20A
    • Require Quantity: 08
    • Package Quantity: 1
    • Replaced By: 82210AG20A
    $1.70 $1.02
    1
    Add To Cart
  • 82210A Subaru 82210AE25A
    82210AE25A
    Fuse-Auto
    • 25A
    • Require Quantity: 04
    • Package Quantity: 1
    • Replaced By: 82210FC025
    $0.96 $0.58
    1
    Add To Cart
  • 82210A Subaru 82210AE30A
    82210AE30A
    Fuse-Auto
    • 30A
    • Require Quantity: 03
    • Package Quantity: 1
    $1.52 $0.91
    1
    Add To Cart
  • Fuse-Main
    82210B*B
    82211FC030
    Fuse-Main
    • 30A
    • Require Quantity: 03
    • Package Quantity: 1
    $3.28 $2.36
    1
    Add To Cart
  • 82210B*B Subaru 82211FC150
    82211FC150
    Fuse-Main
    • 50A
    • Require Quantity: 05
    • Package Quantity: 1
    $25.10 $18.07
    1
    Add To Cart
  • 0218S
    021808000
    Nut
    • Replaced By: 021808006
    $0.76 $0.46
    1
    Add To Cart
  • 82501D*A
    82501AG070
    Relay
    • ACV31212 M05
    • Require Quantity: 07
    • Package Quantity: 1
    $28.63 $20.62
    1
    Add To Cart
  • 82501D*B
    82501AG080
    Relay
    • DENSO 156700-2960
    • Replaced By: 82501AG08A
    $20.07 $14.45
    1
    Add To Cart
Genuine Subaru Parts, the Right Choice
SubaruPartsDeal.com offers the wholesale prices for genuine 2005 Subaru Legacy parts. Parts like Fuse Box are shipped directly from authorized Subaru dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options.
