Relay & Sensor - Engine fit your 1986 Subaru GL Series
Currently shopping for
1986 Subaru GL Series
Change VehicleCategories Close X
Currently selected
Engine Electronics
Other Categories
Automatic Transmission
Body Electronics
Body, Key Kit & Bumper
Differential & Propeller Shaft
Door
Engine Auxiliaries
Engine Main
Engine Mounting & Cooling
Heater & Air Conditioner
Inner Accessories
Manual Transmission
Outer Accessories
Seat & Instrument Panel
Steering System & Cable
Suspension, Axle & Brake
Parts Questions

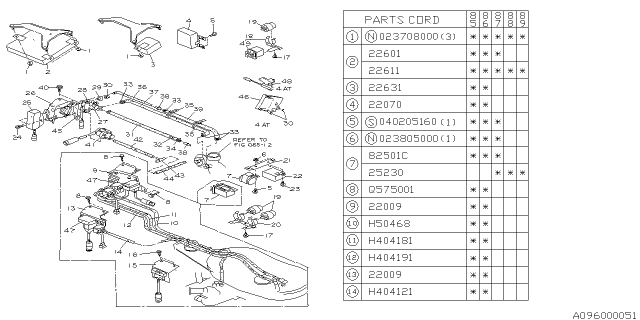

2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.3D +4D +SW
- 2.3D +4D +SW
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- Bracket-Relay82511
- 82511
- 22692
- 22693
- 1487914879AA000
Bushing-Anti After Burning Valve- Notes: -83 B & MPI
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 14879AA001
- 24226
$3.23 $2.231
- 2231422314AA130
Connector-Vacuum Hose- Notes: B
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 16385AA030
$2.35 $1.621
- 22315
- 14878
- H404121
- H404181
- H404191
- H50401
- H504061
- H50468
- H50511
- H50512
- H505332
- F91202
- F91204
- 87015
- 22326
- 25232
- Relay Assembly2523025230AA020
Relay Assembly- Notes: SPI
- Fitting Vehicle Options: 3C.(DL+GL+RS) +S.(DL+GL+GL10) +SW.(DL+GL+GL10)
$98.62 $68.051 - 2523025230AA030
Relay Assembly- Notes: SPI.AT SQUAR
- Fitting Vehicle Options: 3C.GL +S.(GL+GL10) +SW.(GL+GL10)
- Replaced By: 429557110
$97.80 $67.481
- Relay Assembly82501C
82501GA240
Relay Assembly- DENSO 056700-5260
- Notes: SPI
- Fitting Vehicle Options: 3C.(DL+GL+RS) +S.(DL+GL+GL10) +SW.(DL+GL+GL10)
$51.27 $35.371 - 82501C82501GA240
Relay Assembly- DENSO 056700-5260
- Notes: MPI & B
- Fitting Vehicle Options: (3C+S+SW).(GL10/B+4WD/B+RX/B+DL/B) +3C.(GL/B+RS/B)
- Require Quantity: 02
- Package Quantity: 1
$51.27 $35.371 - 82501C
782501110
Relay Assembly- Fitting Vehicle Options: 3C.GL +S.(DL+GL+GL10+GL10/B+RX/B) +SW.(DL+GL+GL10+4WD/B)
- Resistor Assembly22654
- 2265422654AA010
Resistor Assembly- Notes: MPI&B
- Fitting Vehicle Options: (3C+S+SW).(GL/B+RX/B+RS/B) +(S+SW).(DL/B+GL10/B+GL10/B+4WD/B)
- Sensor & Hose Assembly-Vacuum22009
- 22009
- 22631
- 22012
- 25243
- Q575001
- 22613
- Unit Assembly-E.C.C.Control22601
22601AA011
Unit Assembly-E.C.C.Control- Notes: CARB
- Production Date: 198405 - 198509
- Fitting Vehicle Options: S.(DL+GL) +SW.(DL+GL)
- Replaced By: 22601AA013
- 2260122601AA012
Unit Assembly-E.C.C.Control- Notes: CARB
- Production Date: 198405 - 198509
- Fitting Vehicle Options: S.(DL+GL) +SW.(DL+GL)
- Replaced By: 22601AA013
- 2260122601AA013
Unit Assembly-E.C.C.Control- Notes: CARB
- Fitting Vehicle Options: 3C.(DL+GL) +S.(DL+GL) +SW.(DL+GL)
- Unit Assembly-E.G.I.Control22611
22611AA030
Unit Assembly-E.G.I.Control- Notes: MPI
- Production Date: 198405 - 198509
- Fitting Vehicle Options: S.(GL10+GL10/B+RX/B) +SW.(GL10+4WD/B)
- Replaced By: 22611AA033
- 2261122611AA031
Unit Assembly-E.G.I.Control- Production Date: 198405 - 198509
- Fitting Vehicle Options: S.(GL10+GL10/B+RX/B) +SW.(GL10+4WD/B)
- Replaced By: 22611AA033
- 2261122611AA033
Unit Assembly-E.G.I.Control- Notes: B
- Fitting Vehicle Options: (3C+S+SW).4WD/B +(S+SW).(GL10/B+RX/B)
- 2261122611AA100
Unit Assembly-E.G.I.Control- Notes: -5Y SPI
- Production Date: 198507 - 198609
- Fitting Vehicle Options: 3C.GL +S.(GL+GL10) +SW.(GL+GL10)
- Replaced By: 22611AA104
- 2261122611AA101
Unit Assembly-E.G.I.Control- Notes: 5Z-61 SPI
- Production Date: 198507 - 198609
- Fitting Vehicle Options: 3C.GL +S.(GL+GL10) +SW.(GL+GL10)
- Replaced By: 22611AA104
- 2261122611AA102
Unit Assembly-E.G.I.Control- Notes: 62- SPI
- Production Date: 198507 - 198609
- Fitting Vehicle Options: 3C.GL +S.(GL+GL10) +SW.(GL+GL10)
- Replaced By: 22611AA104
- 2261122611AA140
Unit Assembly-E.G.I.Control- Notes: B
- Fitting Vehicle Options: (3C+S+SW).(GL/B+RX/B) +(S+SW).(GL10/B+4WD/B)
- Replaced By: 22611AA141
- 2261122611AA141
Unit Assembly-E.G.I.Control- Notes: B
- Fitting Vehicle Options: (3C+S+SW).(4WD/B+RX/B+GL/B+GL10/B)
- 2261122611AA200
Unit Assembly-E.G.I.Control- Notes: SPI
- Production Date: 198607 - 198708
- Fitting Vehicle Options: 3C.(DL+GL) +S.(DL+GL+GL10) +SW.(DL+GL+GL10)
- 2261122611AA201
Unit Assembly-E.G.I.Control- Notes: SPI
- Production Date: 198607 - 198708
- Fitting Vehicle Options: 3C.(DL+GL) +S.(DL+GL+GL10) +SW.(DL+GL+GL10)
- 22070
- 16102
- $1.36 $0.781
- $4.80 $3.311
- $1.46 $0.841
- $0.50 $0.291
- $0.80 $0.461
Genuine Subaru Parts, the Right Choice
SubaruPartsDeal.com offers the wholesale prices for genuine 1986 Subaru GL Series parts. Parts like Relay & Sensor - Engine are shipped directly from authorized Subaru dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options.
