4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.P/T 4WD

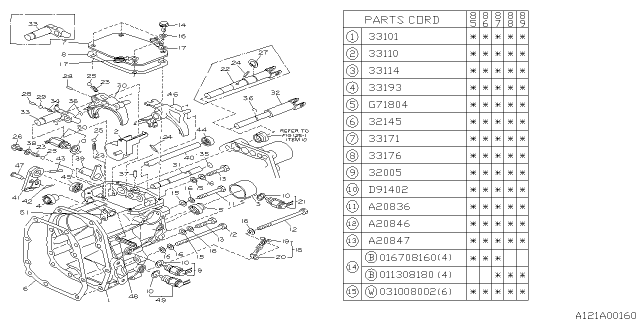

    1985 Subaru GL Series Manual Transmission Transfer & Extension Diagram 1
  • 2.P/T 4WD

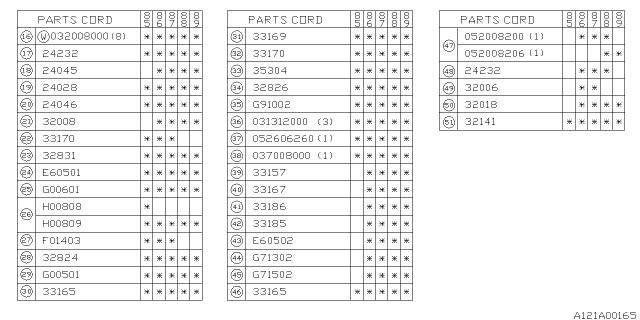

    1985 Subaru GL Series Manual Transmission Transfer & Extension Diagram 2
  • 3.P/T 4WD

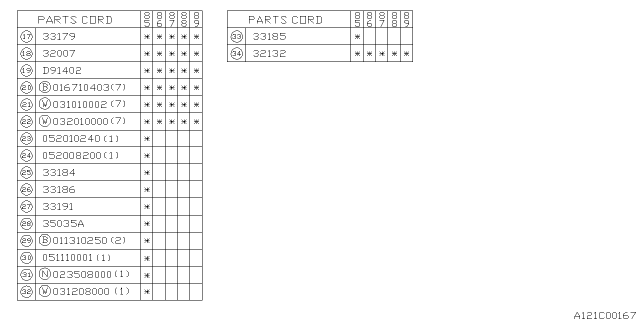

    1985 Subaru GL Series Manual Transmission Transfer & Extension Diagram 3
  • 4.P/T 4WD

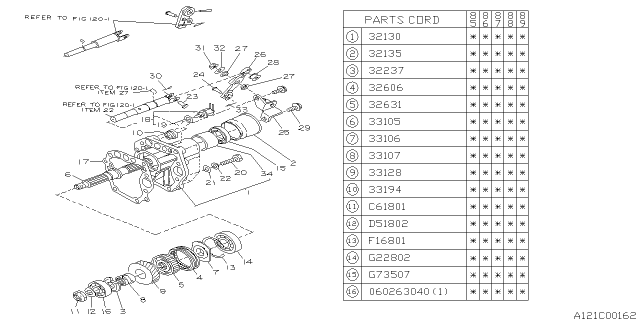

    1985 Subaru GL Series Manual Transmission Transfer & Extension Diagram 4
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • A20846
    800208460
    Bolt
    • Require Quantity: 02
    • Package Quantity: 1
    • Replaced By: 808408070
    $3.77 $2.60
    1
    Add To Cart
  • A20847
    800208470
    Bolt
    • Require Quantity: 05
    • Package Quantity: 1
    • Replaced By: 800608600
    $1.22 $0.70
    1
    Add To Cart
  • Bushing-Extension
    32132
    32132AA000
    Bushing-Extension
    • Fitting Vehicle Options:

      3C.(DL+GL+4WD/B+RS) +S.(DL+GL+4WD/B+RX/B) +SW.(DL+GL+GL/B+4WD/B)

    • Replaced By: 472487094
    $18.60 $12.83
    1
    Add To Cart
  • 32132
    32132AA010
    Bushing-Extension
    • Fitting Vehicle Options:

      S.(GL10/B+RX/B) +SW.(DL+GL),

      3C.(DL+GL+4WD/B+RS) +S.(DL+GL+4WD/B+RX/B) +SW.(DL+GL+GL/B+4WD/B)

    • Replaced By: 472487094
    $18.60 $12.83
    1
    Add To Cart
  • Clip-No.3
    24232
    24232AA010
    Clip-No.3
    • Notes: -82
    • Fitting Vehicle Options:

      3C.(GL+4WD/B) +(S+SW).(GL+GL10/B+4WD/B+RX/B) +SW.(DL+GL/B)

    • Require Quantity: 02
    • Package Quantity: 1
    • Replaced By: 24232AA011
    $1.14 $0.66
    1
    Add To Cart
  • 24232
    425667300
    Clip-No.3
    • Notes: 4WSR
    • Fitting Vehicle Options:

      S.4WD/B +SW.(DL+GL/B+4WD/B)

    • Replaced By: 24233AA180
  • Gasket-Case,Rear
    32145
    32145AA000
    Gasket-Case,Rear
    • Notes: -47
    • Location: Rear
    • Fitting Vehicle Options:

      S.(GL10/B+RX/B) +SW.(DL+GL)

    • Replaced By: 32145AA030
    $7.82 $5.39
    1
    Add To Cart
  • 32145
    32145AA001
    Gasket-Case,Rear
    • Notes: 48-
    • Location: Rear
    • Fitting Vehicle Options:

      3C.(GL+4WD/B) +(S+SW).(GL+GL10/B+4WD/B+RX/B) +SW.(DL+GL/B)

    • Replaced By: 32145AA030
    $7.82 $5.39
    1
    Add To Cart
  • Gasket-Transfer
    33179
    33179AA000
    Gasket-Transfer
    • Notes: -47
    • Fitting Vehicle Options:

      S.(GL10/B+RX/B) +SW.(DL+GL)

    • Replaced By: 33179AA070
  • 33179
    33179AA001
    Gasket-Transfer
    • Notes: 48-
    • Fitting Vehicle Options:

      3C.(GL+4WD/B) +(S+SW).(GL+GL10/B+4WD/B+RX/B) +SW.(DL+GL/B)

    • Replaced By: 33179AA070
  • G91002 Subaru 806910020
    806910020
    O Ring
    • Notes: 4WDR
    • Replaced By: 806910170
    $1.16 $0.67
    1
    Add To Cart
  • G71302
    806713020
    Oil Seal
    • 13X22X6
    • Notes: 4WSR
    • Require Quantity: 02
    • Package Quantity: 1
    $3.40 $2.35
    1
    Add To Cart
  • Switch Assembly-Back Lamp
    32005 Subaru 32005AA001
    32005AA001
    Switch Assembly-Back Lamp
    • Notes: NILES
    • Fitting Vehicle Options:

      3C.(DL+GL+4WD/B+RS) +S.(DL+GL+GL10/B+4WD/B+RX/B) +SW.(GL+GL/B+4WD/B)

    • Replaced By: 32005AA081
    $43.90 $30.29
    1
    Add To Cart
  • 32005 Subaru 32005AA020
    32005AA020
    Switch Assembly-Back Lamp
    • Notes: -82 DIAMOND
    • Fitting Vehicle Options:

      3C.(GL+4WD/B) +S.(GL+4WD/B+RX/B) +SW.(DL+GL+GL/B+4WD/B)

    • Replaced By: 32005AA081
    $43.90 $30.29
    1
    Add To Cart
Genuine Subaru Parts, the Right Choice
SubaruPartsDeal.com offers the wholesale prices for genuine 1985 Subaru GL Series parts. Parts like Manual Transmission Transfer & Extension are shipped directly from authorized Subaru dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options.
