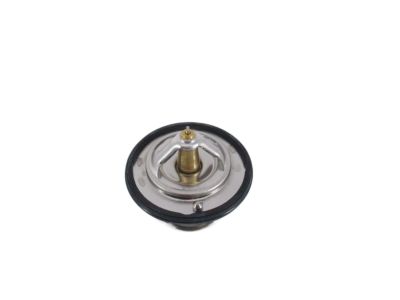

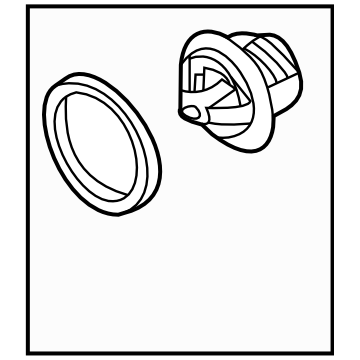

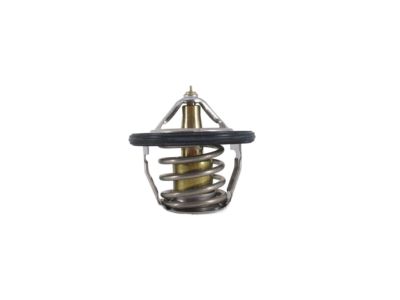

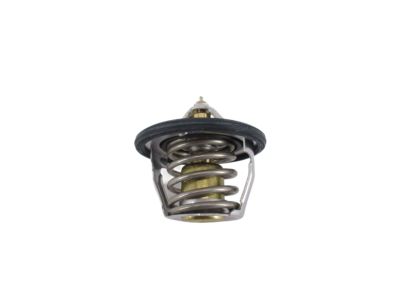

Subaru 21210AA030 THERMOSTAT Gasket Assembly

You can Select Your Vehicle to check if 21210AA030 fits your vehicle.

The thermostat allows for quicker warm-ups and governs the normal operating temperature of the engine.

To replace the thermostat, you should raise the front of the vehicle and support it securely on jackstands, drain the cooling system, remove the thermostat housing cover, clean the mating surfaces, install a new seal on the thermostat, place the thermostat into the housing, carefully position the housing cover, install the bolts, reconnect the radiator hose, refill the radiator with coolant, and check for leaks.

1. Raise the front of the vehicle and support it securely on jackstands.2. Drain the cooling system.3. Place the drain pan under the thermostat housing.4. Remove the bolts and lift off the housing cover.5. Note how the thermostat is installed and pull it out.6. Clean the mating surfaces of the thermostat housing and cover.7. Install a new seal on the thermostat.8. Place the thermostat into the housing with the proper end facing out.9. Carefully position the housing cover.10. Install the bolts and tighten them to the torque listed in the specifications.11. Place the radiator hose onto the housing cover (if removed).12. Install the hose clamp and tighten it securely.13. Refill the radiator with coolant.14. Start the engine and check for leaks around the thermostat housing and the lower radiator hose.

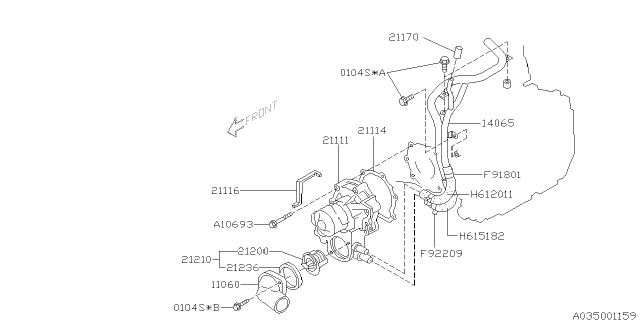

The thermostat is located at the front of the engine, bolted to the bottom of the water pump.
