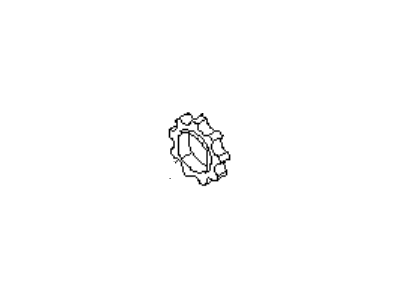

Subaru 15015AA330 Rotor Oil Pump In

You can Select Your Vehicle to check if 15015AA330 fits your vehicle.

The first step in taking out an engine is raising the front of the vehicle and using jackstands to secure it. The oil filter must be removed before draining the engine oil. Next remove timing belt, tensioner, crankshaft sprocket, upper timing belt idler pulley, idler pulley number 1 and idler sprocket number 2. On turbocharged models drain coolant, remove radiator and take off cooling pipes from oil cooler at front of engine. Also don't forget to remove the water pump and Crankshaft Position (CKP) sensor. Remove mounting bolts and oil pump while making sure a drain pan is placed beneath for spilt oil. For inspection purposes there are screws that hold down the pump cover; so remove them, apply alignment marks on inner/outer rotors and withdraw them from pump housing. Meanwhile clean up everything including: rotors, pump housing, relief valve and spring because they all might have been damaged at one point or another. If any parts show damage replace the oil pump assembly. Measure rotor tip clearance, outer rotor-to-oil pump housing clearance, rotor-to-cover clearance also if not within limit then replace with a new oil pump assembly but if ok reinstall cover on top of it tightening screws fastener.For installation purposes ensure that relief valve and rotors are lubricated with clean engine oil plus matchmarks which were made earlier are lined up together as well put back new crankshaft oil seal as well as an old O-ring between engine block which has a bearing housing too belonging to this particular type of fitting; but more specifically anaerobic sealant will be applied here so that it can be installed again on top even into its place (engine block). Fix remaining installation steps backwards by refilling fresh lubricants in motor plus brand new filters (oil only) besides refilling liquid cooled systems found those turbo models once more before starting said machine thus checking correct oil pressure as well as looking for any leaks of oil.

Remove the mounting bolts and the oil pump, placing a drain pan underneath to catch the spilled oil. For inspection, remove the pump cover screws, apply alignment marks to the inner and outer rotors, and withdraw the rotors from the pump housing. Clean and inspect all components for damage, including the pump housing, rotors, relief valve, and spring.
