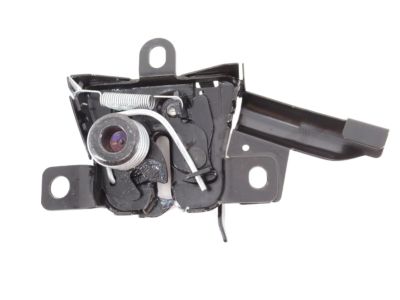

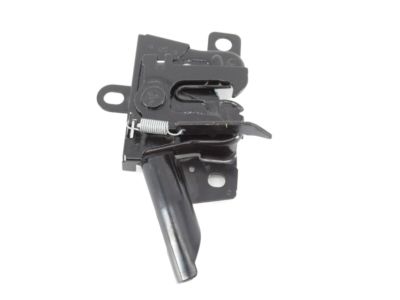

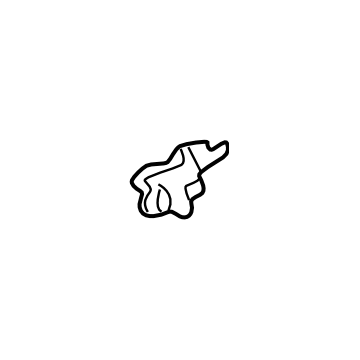

Subaru 57310SA020 Front Hood Lock Assembly

You can Select Your Vehicle to check if 57310SA020 fits your vehicle.

To uninstall the latch, one has to locate and then pry off the radiator grille, then mark a line around the latch for easy alignment, then finally undo the latch retaining bolts of the radiator support and finally removing the latch. Following this, raise the hood and reverse the direction of the hood release cable, prior to disconnecting it from the latch assembly. On the cable, it shall be detached from the latch assembly and out fitted with a stiff wire at the end and traced back to the firewall where it shall have all the cable retaining clips popped out. In the passenger compartment, the knee bolster must be detached and the hood release lever must be removed once the driver's side panel lower cover is popped-off while pulling the cable backward. Pull the stiff wire of the new cable through the hole and remove the old cable by disconnected it from the lever of the hood release and pulling it till the rear side of the passenger compartment. Take out the existing grommet boot from the cable opening of the firewall; guarantee that the new cable possesses a new grommet, and join the new cable with the wire. From the engine compartment side of the cable, extract the wire through the hole in the cable; then, from the passenger compartment side, force the grommet back into the hole in the firewall until it is properly seated.

A few drops of light oil or lock lubricant should be used for the hinges and latch assemblies.
